Visual Basic | Advanced DataGridViews exercise | DataGridView linked to DetailsView

This exercise is provided to allow potential course delegates to choose the correct Wise Owl Microsoft training course, and may not be reproduced in whole or in part in any format without the prior written consent of Wise Owl.

The answer to the exercise will be included and explained if you attend the relevant Wise Owl course (sadly, only in the UK for now).

Software ==> Visual Basic  (46 exercises)
Version ==> Any version of VB
Topic ==> Advanced DataGridViews  (2 exercises)
Level ==> Harder than average
Before you can do this exercise, you'll need to download and unzip this file (if you have any problems doing this, click here for help).

You need a minimum screen resolution of about 700 pixels width to see our exercises. This is because they contain diagrams and tables which would not be viewable easily on a mobile phone or small laptop. Please use a larger tablet, notebook or desktop computer, or change your screen resolution settings.

Create a data source for the Films database in the above folder (this contains tables for categories of film, certificates and the films themselves).

Create a form called frmList to look and work like this:

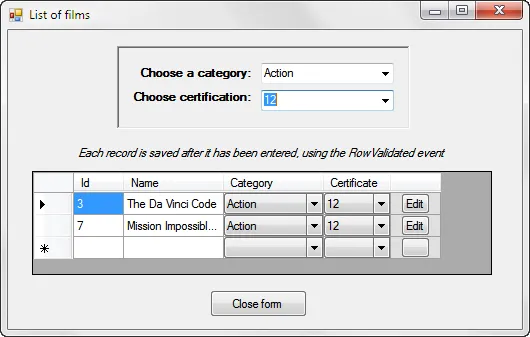

Visual Basic 2010 exercise - Advanced DataGridViews (image 1)

When you choose a category and certificate, you see all the corresponding films

Now create another form called frmDetails to show a single film at a time:

Visual Basic 2010 exercise - Advanced DataGridViews (image 2)

Saving changes should return you to the previous (updated) list form

Make sure that:

  • when you double-click on a film in the list (or click on the Edit button) the film automatically appears in the separate single-record form
  • when you make any changes they are automatically written to the underlying database

If you get all of this working, you have cracked Windows Forms applications!
