In this tip
Drill down lets your user switch between levels within a visual's hierarchy.

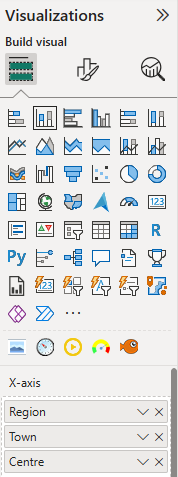

You can add multiple fields into your visual's X-axis in Power BI to create a hierarchy.
Here we are using a location hierarchy in the X-axis of a column chart.

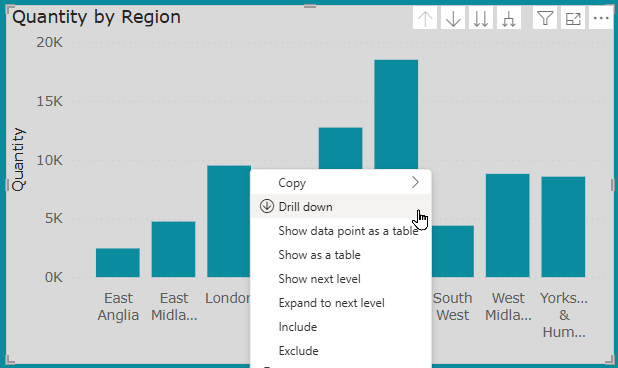

To drill between the levels, right-click a data point and choose Drill down from the list.
This will switch the x-axis to the level below (Town) and apply this data point (Region London) as a filter.
This method works but returns a cluttered list and requires your user to right click.
You can instead set Drill down to appear as a tooltip. To do this, from the ribbon choose File | Options and settings | Options.

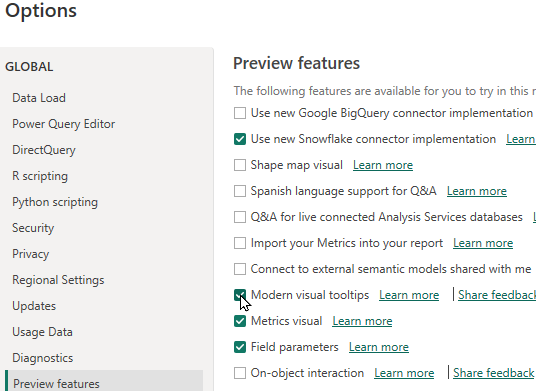

In the dialog box which appears, select the Preview features page in the GLOBAL section. Choose Modern visual tooltips and then click OK.
Preview features are still in development, Modern visual tooltips has been here since May 2021!

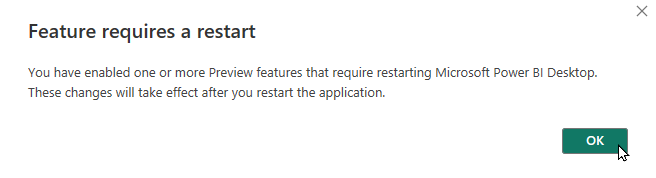

Turning on or off Preview features requires restarting Power BI Desktop.
Make sure you save the report before closing it!

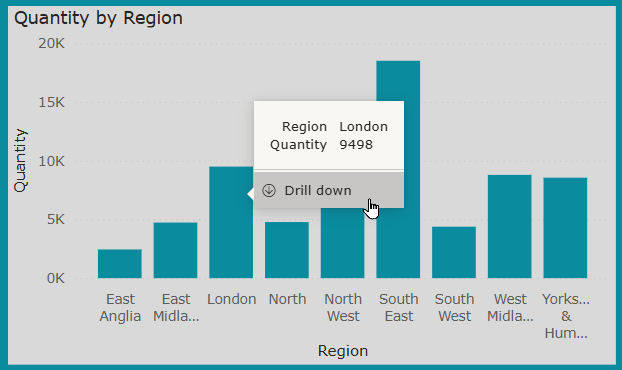

Now when you hover over a column the tooltip will have the Drill down option.
If you have drill-through enabled it will also appear in the tooltip.
