Posted by Andy Brown on 04 June 2025

In this blog

A refresher: using TMDL view
Renaming columns
Viewing property tooltips and intelligent fixes
Formatting your code

Before we look at the improvements to TMDL view, a quick reminder of what it is ...

A refresher: using TMDL view

TMDL view provides a new(ish) way to see the structure and content of your semantic model (in English: your data tables and the relationship between them).

You can go to this view for any report by clicking on this icon.

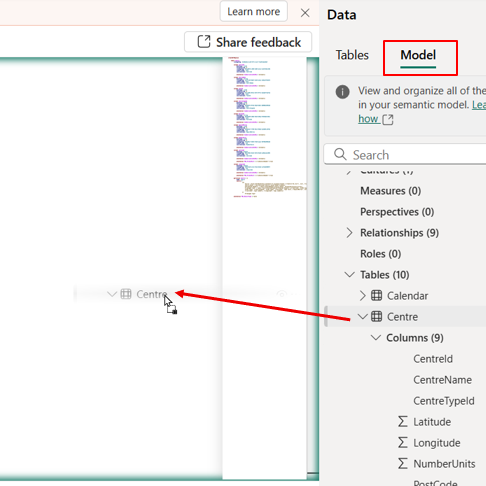

You can then drag any table into the main view to look at it in more detail:

Make sure youi've clicked on the Model tab as shown above first. Here I've chosen to look at the Centre table.

Renaming columns

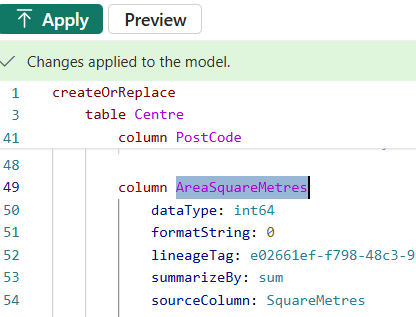

You can now change the name of a column property (previously you could do this but without additional work on your part this name change wasn't retained):

Here we've changed the name of this column from SquareMetres to AreaSquareMetres. When you click on Apply this new name will be saved within your model.

Viewing property tooltips and intelligent fixes

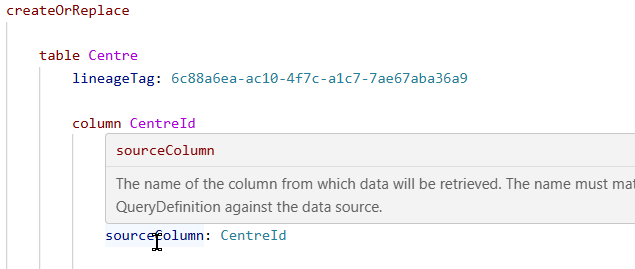

You can now hover over any property to see a tooltip about it:

These look remarkably similar to Visual Studio Code tips for Python properties!

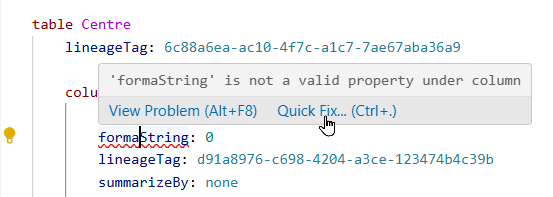

You can also now apply quick fixes to (for example) mistyped properties:

In this example you could click on the Quick Fix link or press Ctrl + . to correct the properrty name shown to formatString automatically.

Formatting your code

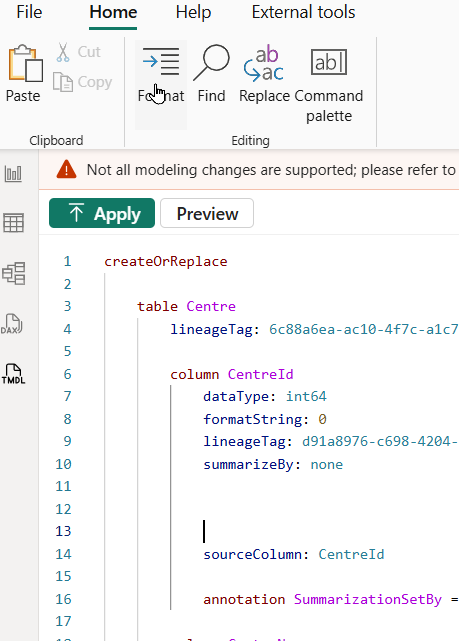

You can click on the Format tab on the ribbon (or press Shift + Alt + F) to format the lines of code making up your model:

However, all that this seems to do is remove blank lines that you've added!

It's amazing how far Power BI Desktop has come! There's no need any more to reference external tools, and it's getting easier and easier to document data (sorry, semantic) models.
